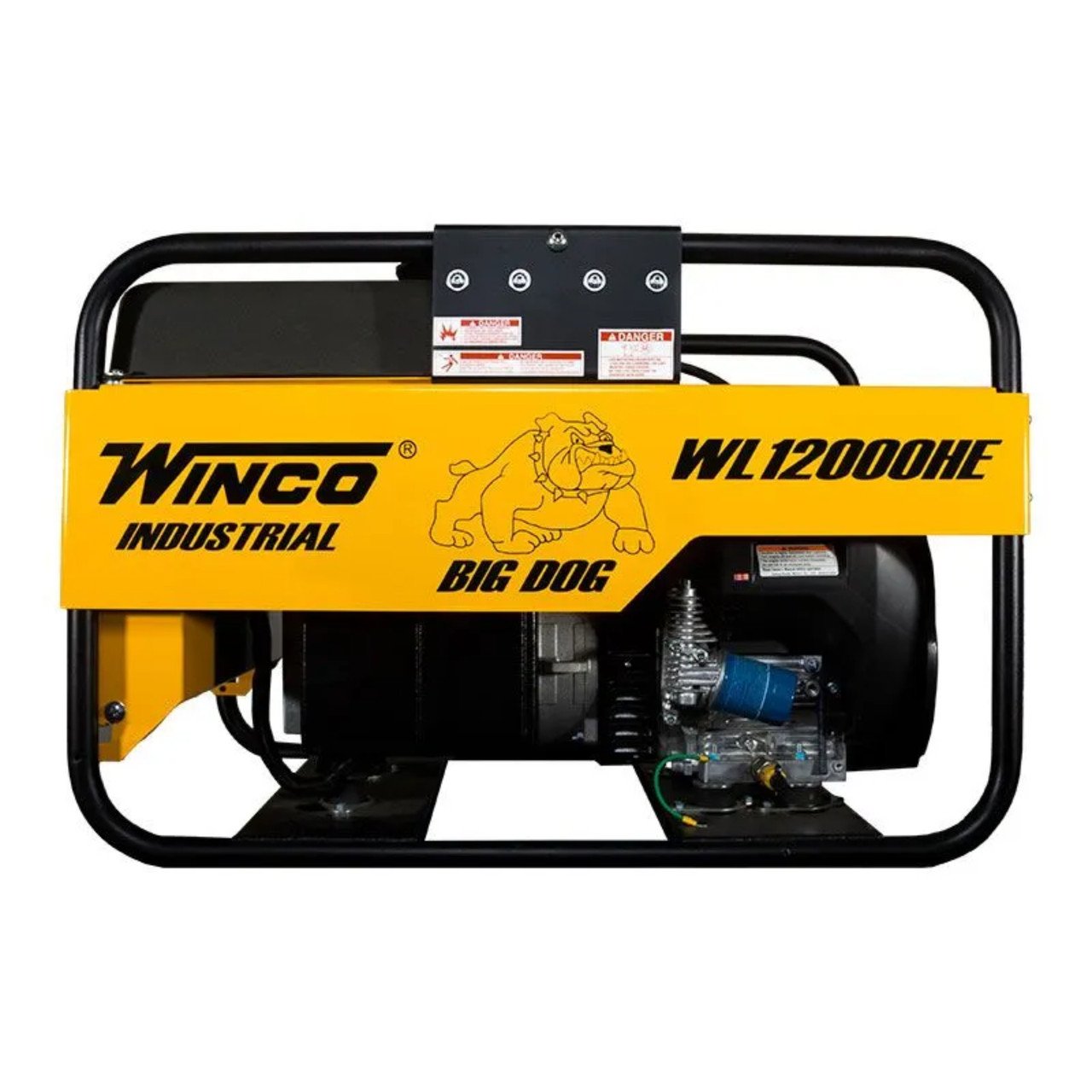

WINCO WL12000HE-04/A 10800W 3ph-120/208V Electric Start Portable Generator
$3,199.00
The WINCO WL12000HE-04/A is a gasoline-powered commercial portable generator with dedicated 120/208-volt three-phase output. WINCO documents 12,000 surge watts and 10,800 continuous watts for this configuration. Use ForgeBay SKU FB-AP-24012-022 for this exact listing.
- Catalog SKU
- 24012-022
- Brand
- WINCO
- Model
- WL12000HE-04-A
- MPN
- WL12000HE-04-A
Check wattage, fuel type, phase, voltage, runtime, outlets, noise rating, transfer-switch compatibility, SKU, price, and shipping requirements.
- Generators
- Power backup
- Accessories
Product overview
WINCO WINCO WL12000HE-04/A 10800W 3ph-120/208V Electric Start Portable Generator is listed by ForgeBay Equipment for buyers comparing portable generators, winco. ForgeBay Equipment is operated by EQUIPMENT4YOU, LLC.
Key specifications
- SKU
- FB-AP-24012-022
- Brand
- WINCO
- Category
- Portable Generators, WINCO
- Availability
- Estimated delivery: 7–14 business days
- Price
- $3,199.00
- Catalog SKU
- 24012-022
- Brand
- WINCO
- Model
- WL12000HE-04-A
- MPN
- WL12000HE-04-A
- Phase
- 3ph
- Voltage
- 120/208V
What's included
WINCO WL12000HE-04/A 10800W 3ph-120/208V Electric Start Portable Generator includes the product shown in the listing title, image gallery, selected options, and any listed product documents. Optional accessories, installation supplies, and delivery appointment services are not included unless they are explicitly shown on the product page or order confirmation.
Compatibility / fitment
Confirm model fitment, capacity, measurements, power requirements, installation needs, generator wattage, voltage, phase, fuel type, transfer-switch compatibility, and accessory compatibility before ordering. Use the product SKU, documents, images, and category details when comparing fit.
Shipping Information
- Free shipping included.
- Orders are usually delivered within 7–14 business days after order confirmation.
- Some oversized equipment may require carrier appointment scheduling before delivery.
Warranty / support note
Warranty coverage and support details can vary by product and manufacturer. Contact ForgeBay Equipment with the SKU before ordering if you need warranty, parts, delivery, or installation-support information confirmed.
Returns note
Returns are handled according to the Refund Policy. Oversized, installed, or special-order products may require additional review before return approval.
WINCO WL12000HE-04/A 120/208 V Three-Phase Portable Generator
The WINCO WL12000HE-04/A is a gasoline-powered commercial portable generator with dedicated 120/208-volt three-phase output. WINCO documents 12,000 surge watts and 10,800 continuous watts for this configuration.
Documented product data
- WINCO SKU: 24012-022; model: WL12000HE-04/A
- Output: 12,000 surge watts; 10,800 continuous watts
- Electrical service: 120/208 V, three phase, 60 Hz
- Current: 30 A at 1.0 power factor; 37.5 A at 0.8 power factor
- Engine: Honda GX630RH gasoline V-twin
- Generator end: Mecc Alte ET20F-200 with ASR AVR
- Receptacles: three NEMA 5-20 duplex GFCI and one NEMA L21-30 full-power outlet
- Fuel tank: 15 gal
Selection and installation note
A customer-supplied 12-volt starting battery is required. Operate only with the fresh-air flow, grounding, load balancing, and environmental protection specified in the WINCO manual; the unit is designed for 60 Hz operation and is not for an unventilated compartment.
Product reference: FB-AP-24012-022.
| Catalog SKU | 24012-022 |
|---|---|
| Brand | WINCO |
| Model | WL12000HE-04-A |
| MPN | WL12000HE-04-A |
| Phase | 3ph |
| Voltage | 120/208V |
| Frequency | 60 Hz |
| Rated Power | 10800W |
| Enclosure | NEMA 5 |
| Application | Portable power |
| Condition | New |
Free shipping on every product
Free shipping on all products. Orders are usually delivered within 7–14 business days after order confirmation. Some oversized equipment may require carrier appointment scheduling before delivery.
Free shipping is included with this product.
Free shipping on all products. Orders are usually delivered within 7–14 business days after order confirmation.
Some oversized equipment may require carrier appointment scheduling before delivery.
How delivery is handled
- Order confirmation: Your order details, SKU, price, and availability are reviewed after checkout.
- Carrier planning: Some oversized equipment may require carrier appointment scheduling before delivery.
- Tracking and support: Tracking or order-status details are provided when available. Contact ForgeBay Equipment with the product SKU for shipping support.
WINCO WL12000HE-04/A 10800W 3ph-120/208V Electric Start Portable Generator - SKU FB-AP-24012-022 includes free shipping. Orders are usually delivered within 7–14 business days after order confirmation.
