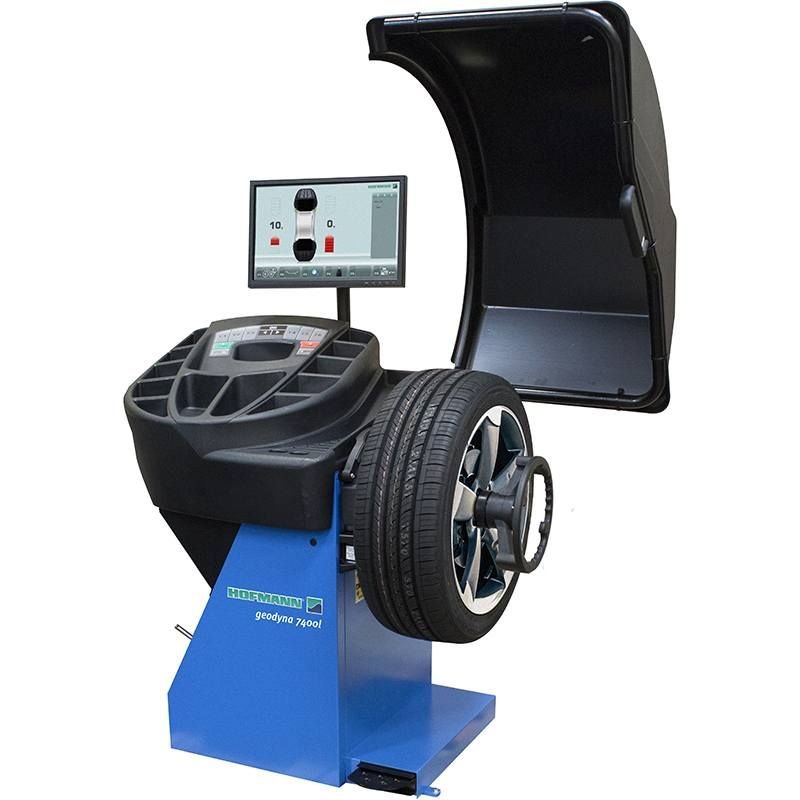

Hofmann GEODYNA 7400L
$4,183.00
Hofmann GEODYNA 7400L is a product from Hofmann for wheel balancing. Documented configuration: Wheel balancer with LCD monitor. Recorded product identifier: 6010170. ForgeBay SKU: FB-WR-6010170.
- Catalog SKU
- 6010170
- Product Type
- Wheel and Tire Balancers
- Brand
- Hofmann
- Model
- GEODYNA 7400L
Review product type, SKU, price, images, and available options.
- Tire changers
- Balancers
- Aligners
Product overview
Hofmann Hofmann GEODYNA 7400L is listed by ForgeBay Equipment for buyers comparing hofmann, wheel and tire balancers. ForgeBay Equipment is operated by EQUIPMENT4YOU, LLC.
Key specifications
- SKU
- FB-WR-6010170
- Brand
- Hofmann
- Category
- Hofmann, Wheel and Tire Balancers
- Availability
- In stock
- Price
- $4,183.00
- Catalog SKU
- 6010170
- Product Type
- Wheel and Tire Balancers
- Brand
- Hofmann
- Model
- GEODYNA 7400L
- MPN
- 6010170
- Application
- Wheel balancing
What's included
Hofmann GEODYNA 7400L includes the product shown in the listing title, image gallery, selected options, and any listed product documents. Optional accessories, installation supplies, and delivery appointment services are not included unless they are explicitly shown on the product page or order confirmation.
Compatibility / fitment
Confirm model fitment, capacity, measurements, power requirements, installation needs, generator wattage, voltage, phase, fuel type, transfer-switch compatibility, and accessory compatibility before ordering. Use the product SKU, documents, images, and category details when comparing fit.
Shipping Information
- Free shipping included.
- Orders are usually delivered within 7–14 business days after order confirmation.
- Some oversized equipment may require carrier appointment scheduling before delivery.
Warranty / support note
Warranty coverage and support details can vary by product and manufacturer. Contact ForgeBay Equipment with the SKU before ordering if you need warranty, parts, delivery, or installation-support information confirmed.
Returns note
Returns are handled according to the Refund Policy. Oversized, installed, or special-order products may require additional review before return approval.
Hofmann GEODYNA 7400L
Hofmann GEODYNA 7400L is a product from Hofmann for wheel balancing. The documented configuration is Wheel balancer with LCD monitor. Use ForgeBay SKU FB-WR-6010170 and recorded product identifier 6010170 to match this exact listing.
Key features

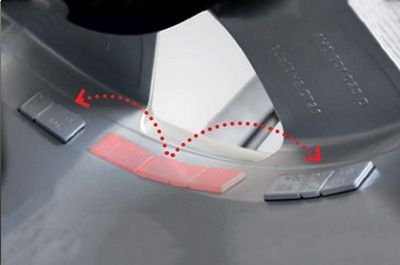

- easyWEIGHT – Pinpoint indicator light offers an accurate, fast and easy solution to position adhesive weight on the wheel

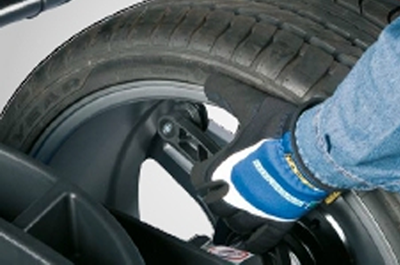

- Short Balancing Cycle The geodyna 7400l is equipped with a semi-automatic data entry for rim diameter and offset

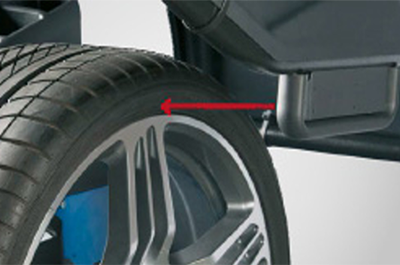

- smartSonar automatically detects rim width and the measurement cycle is started as soon as the wheel guard has been completely lowered

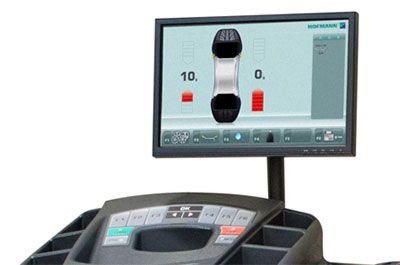

- Intuitive Interface User-friendly interface where all functions are clearly marked with picture icons
- Large digits for the amount of the balance weight and bright indicators for weight position
- Fast and intuitive selection of the cycle modes
Verified specifications
| Product | Hofmann GEODYNA 7400L |
|---|---|
| ForgeBay SKU | FB-WR-6010170 |
| Brand | Hofmann |
| Model | GEODYNA 7400L |
| Recorded product identifier | 6010170 |
| Application | Wheel balancing |
| Product weight | 253 lbs |
| Angular resolution | ±0.35° |
| Balancing accuracy | 0.035 oz (1 g) |
| Diameter of shaft | 40 mm |
| Dimensions LxWxH (Unit only) | 51" x 34" x 50" |
| Length of shaft | 225 mm |
| Manual offset range | 1" – 20" |
| Manual rim diameter range | 8" – 32" |
| Manual rim width range | 1" – 20" |
| Max. wheel diameter | 42" |
| Max. wheel weight | 154 lbs (70 kg) |
| Measuring speed | < 200 rpm |
| Motorized | Yes |
| Net Weight | 253 lbs (115 kg) |
| Power Requirements | 230 VAC 1 ph 50/60 Hz – 1.1A |
| Semi-automatic rim diameter range | 8" – 25" |
| Semi-automatic rim width range | 3" – 15" |
| Start/Stop balance time – Check spin (Wheel 195/65R15) | 4.5 s |
| Wheel clamping | Quick Nut |
Product reference: FB-WR-6010170.
| Catalog SKU | 6010170 |
|---|---|
| Product Type | Wheel and Tire Balancers |
| Brand | Hofmann |
| Model | GEODYNA 7400L |
| MPN | 6010170 |
| Application | Wheel balancing |
| Condition | New |
