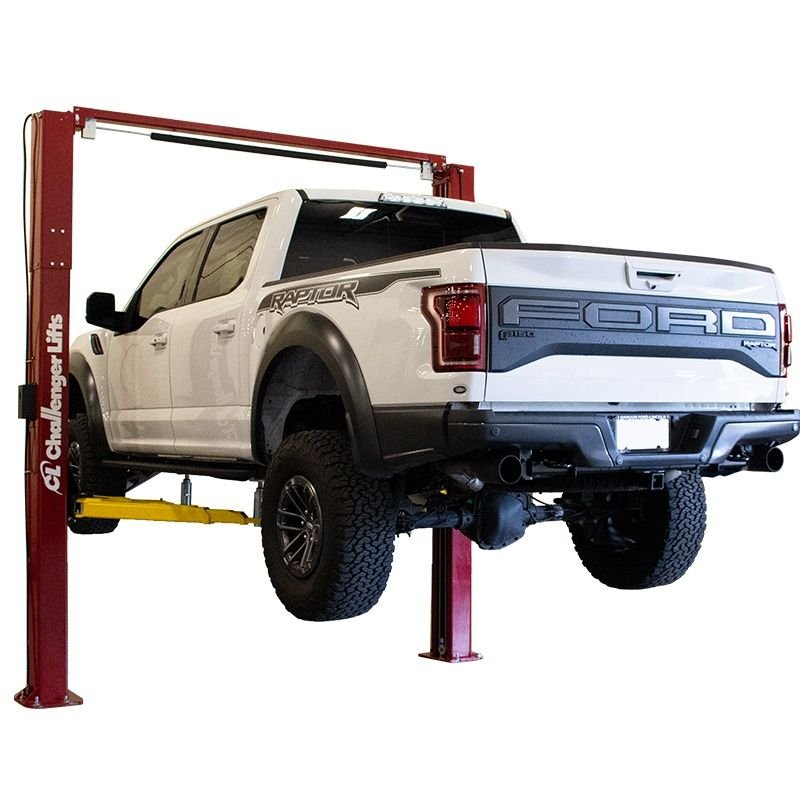

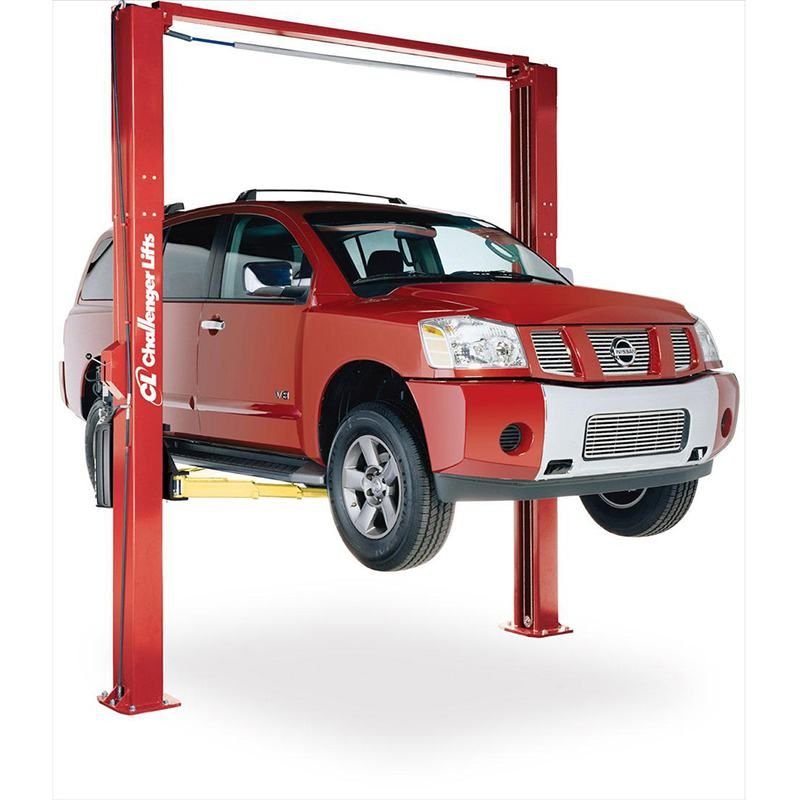

Challenger VLE10
$3,600.00
Challenger VLE10 is a product from Challenger for two-post vehicle lifting. Documented configuration: VLE10 versymmetric® CAR lift. Recorded product identifier: 6010127. ForgeBay SKU: FB-WR-6010127.
- Catalog SKU
- 6010127
- Capacity
- 10,000 lb
- Brand
- Challenger
- Model
- VLE10
Check capacity, product images, SKU, price, and specifications for this lift.
- Car lifts
- Bridge jacks
- Lift parts
Product overview
Challenger Challenger VLE10 is listed by ForgeBay Equipment for buyers comparing challenger, home garage lifts, two-post lifts for vehicles. ForgeBay Equipment is operated by EQUIPMENT4YOU, LLC.
Key specifications
- SKU
- FB-WR-6010127
- Brand
- Challenger
- Category
- Challenger, Home garage lifts, Two-Post Lifts for Vehicles
- Availability
- Estimated delivery: 7–14 business days
- Price
- $3,600.00
- Catalog SKU
- 6010127
- Capacity
- 10,000 lb
- Brand
- Challenger
- Model
- VLE10
- MPN
- 6010127
- Application
- Two-post vehicle lifting
What's included
Challenger VLE10 includes the product shown in the listing title, image gallery, selected options, and any listed product documents. Optional accessories, installation supplies, and delivery appointment services are not included unless they are explicitly shown on the product page or order confirmation.
Compatibility / fitment
Confirm model fitment, capacity, measurements, power requirements, installation needs, generator wattage, voltage, phase, fuel type, transfer-switch compatibility, and accessory compatibility before ordering. Use the product SKU, documents, images, and category details when comparing fit.
Shipping Information
- Free shipping included.
- Orders are usually delivered within 7–14 business days after order confirmation.
- Some oversized equipment may require carrier appointment scheduling before delivery.
Warranty / support note
Warranty coverage and support details can vary by product and manufacturer. Contact ForgeBay Equipment with the SKU before ordering if you need warranty, parts, delivery, or installation-support information confirmed.
Returns note
Returns are handled according to the Refund Policy. Oversized, installed, or special-order products may require additional review before return approval.
Challenger VLE10
Challenger VLE10 is a product from Challenger for two-post vehicle lifting. The documented configuration is VLE10 versymmetric® CAR lift. Use ForgeBay SKU FB-WR-6010127 and recorded product identifier 6010127 to match this exact listing.
Key features

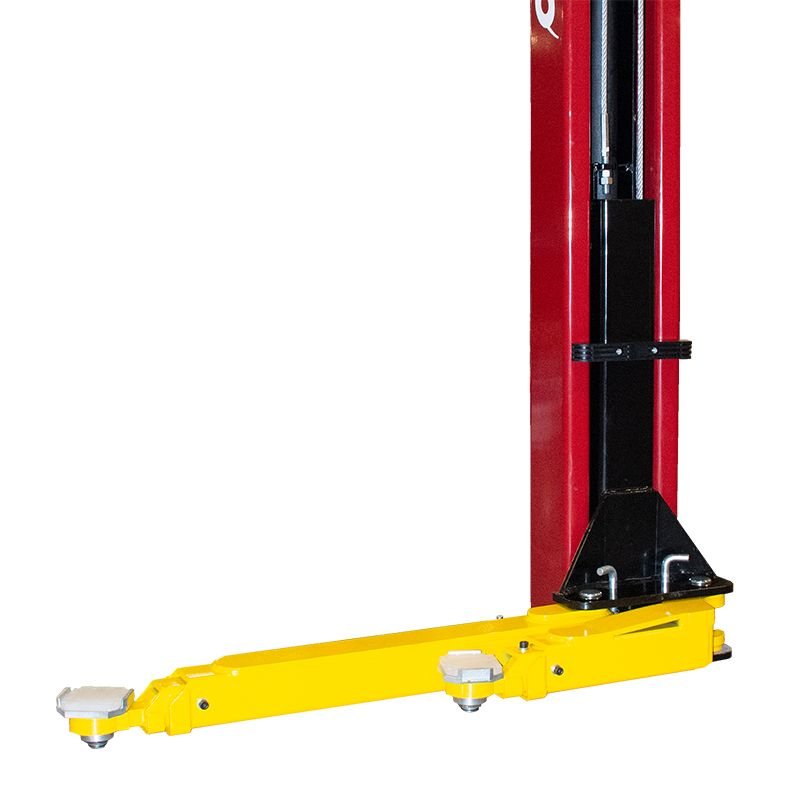

- 3-Stage Versymmetric ® front arms and 2-Stage rear arms provide a wide arm sweep for asymmetric and symmetric lifting in the same service bay.
- 11.875” standard height fits in service bays with 12’ ceiling height.
- Double telescoping screw pads with rubber foot pad.
- Padded overhead shut-off system prevents vehicle damage.
- Jacketed pulley-less single-point mechanical lock release system that was once exclusive to our CL series lifts are now standard on the VLE10.
- Rubber door guards protect vehicle from door damage.
- Plated arm restraints and arm pins inhibit rust and provide long-lasting durability.
Verified specifications
| Product | Challenger VLE10 |
|---|---|
| ForgeBay SKU | FB-WR-6010127 |
| Brand | Challenger |
| Model | VLE10 |
| Recorded product identifier | 6010127 |
| Application | Two-post vehicle lifting |
| Product weight | 2000 lbs |
| Arms | 3-Stage Versymmetric® Front/2-Stage Rear |

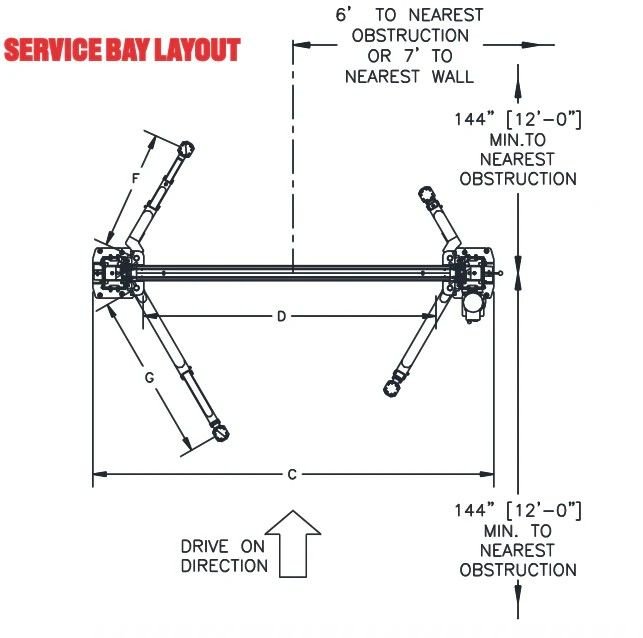

| Between Columns | 110.25" |

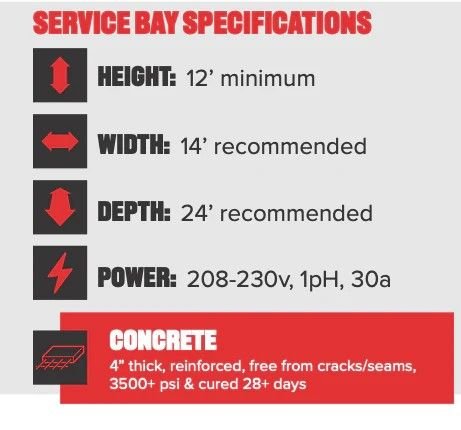

| Ceiling Height Required | Standard: 12' Extended Height 14' |
| Drive-Thru Clearance | 98.375" |
| Floor to Overhead Switch | Standard: 137" Extended Height: 161" |
| Front Arm Reach | 22.3125"-39.375" |
| Lifting Capacity | 10,000 lbs. |
| Lifting Configuration | Symmetric and Asymmetric |
| Max Load Per Arm | 2,500 lbs |
| Motor / Voltage | 2HP, 208v-230v, 60Hz, 1Ph |
| Overall Height | Standard: 143.875" Extended Height: 167.875" |
| Overall Width | 131.625" |
| Rear Arm Reach | 38.375"-55.375" |
| Rise Time | 44s |
| SKU# | 6010127 |
| Screw Pad Height | 4.25"-6.75" |
Product reference: FB-WR-6010127.
| Catalog SKU | 6010127 |
|---|---|
| Capacity | 10,000 lb |
| Brand | Challenger |
| Model | VLE10 |
| MPN | 6010127 |
| Application | Two-post vehicle lifting |
| Condition | New |
